Fiber Cleavers

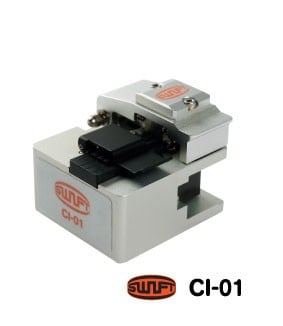

CI-01
Key Features:
  • Economical Price
  • Stable Operation by Step-Action Process
  • Compact Design
  • High Precision Blade with 16 Cleave channel

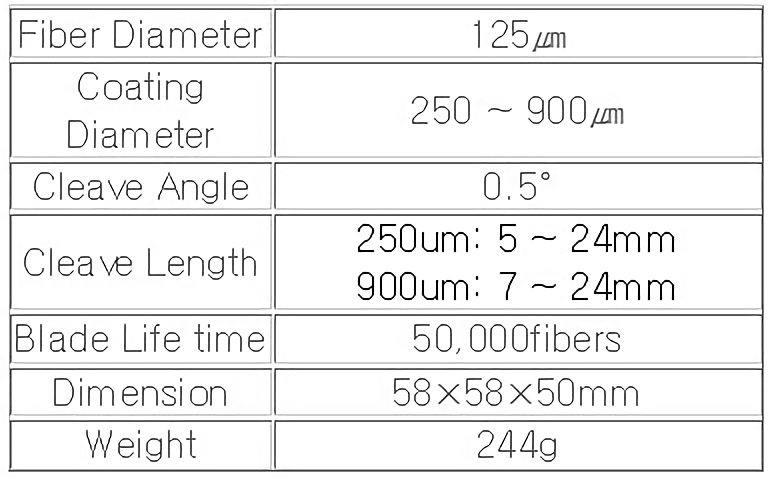

Spesification:

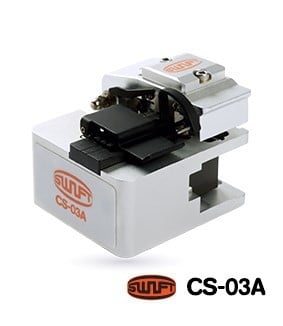

CS-03A
Key Features:
  • Single Action for Cleaving (Full Automatic)
  • Oil Damper System
  • Compact Design

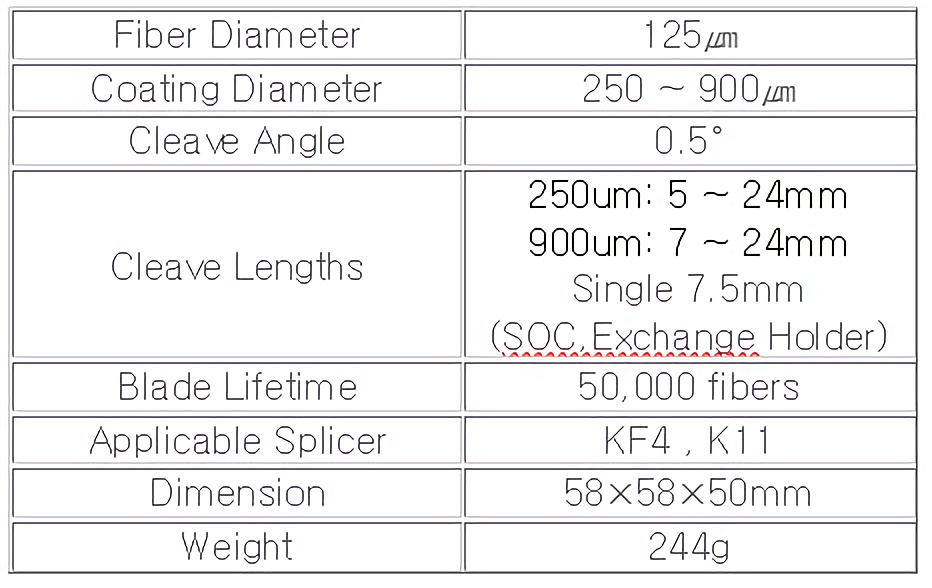

Spesification:

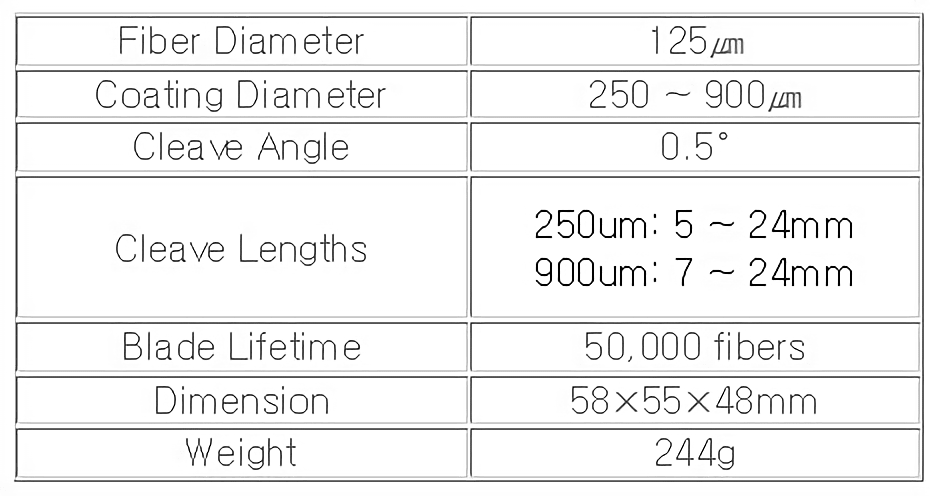

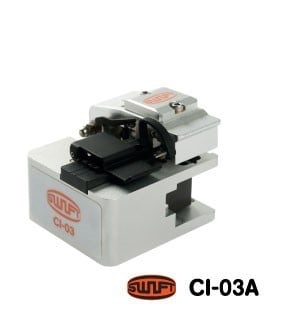

CI-03A
Key Features:
  • Single Action for Cleaving (Full Automatic)
  • Oil Damper System
  • Compact Design
Spesification:

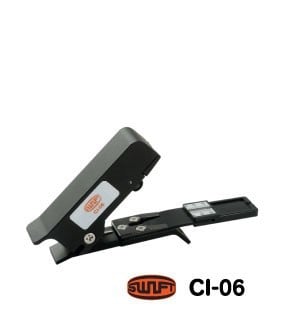

CI-06

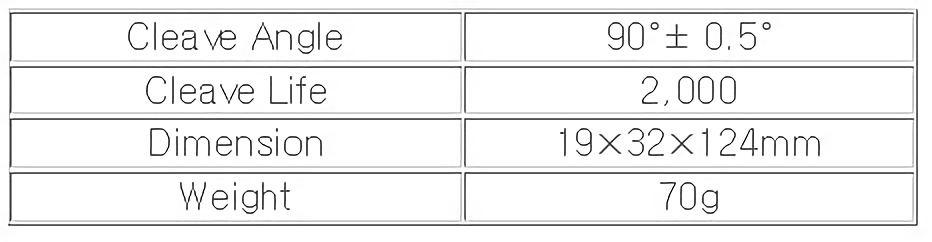

Spesification:

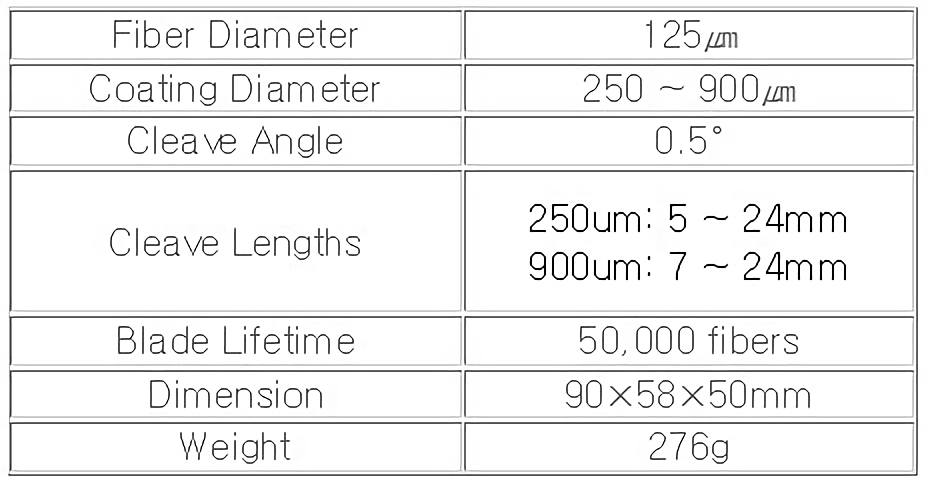

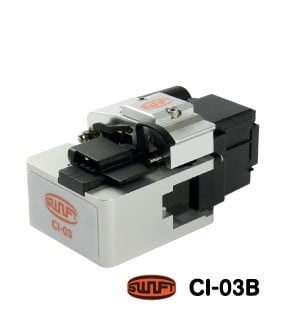

CI-03B
Key Features:
  • Single Action(Full Automatic) for cleaving & collecting fiber chips
  • Oil Damper System
  • High Precision Blade with 16 Cleave channel
Spesification:

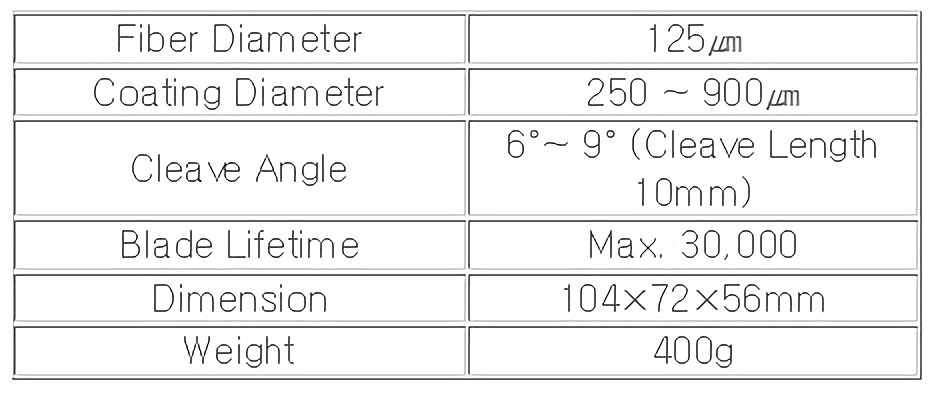

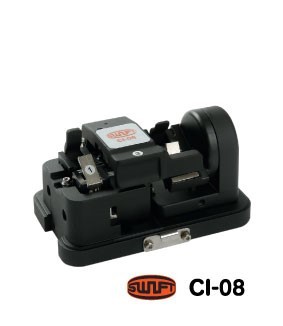

CI-08
Key Features:
  • Cleaving with Oil damper system
  • Typical Cleaving Angle Deviation : 6° ~ 9°
  • Just one touch for tension, twisting, cleaving
Spesification:

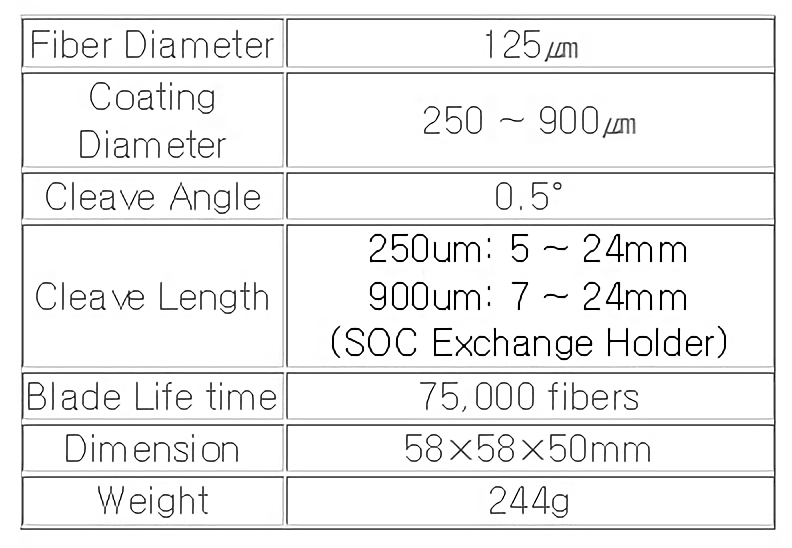

CS-01AT
Key Features:
  • Single Action for Cleaving (Full Automatic)
  • Oil Damper System
  • Blade Life time 75,000 fibers (No setup is required when replacing blade)
Spesification:

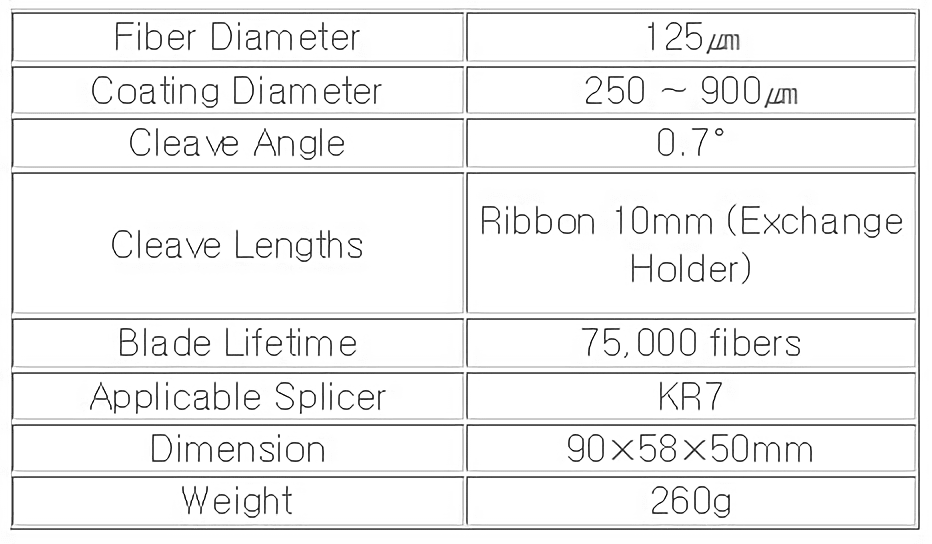

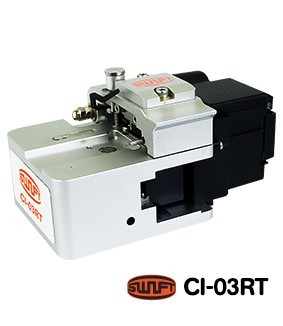

CI-03RT
Key Features:
  • Single Action for Cleaving (Full Automatic), Cleaving & Collection fiber chips
  • Oil Damper System
  • Blade Life time 75,000 fibers (No setup is required when replacing blade)
Spesification:
CS-01BT
Key Features:
  • Single Action for Cleaving (Full Automatic), Cleaving & Collection fiber chips
  • Oil Damper System
  • Blade Life time 75,000 fibers (No setup is required when replacing blade)
Spesification:

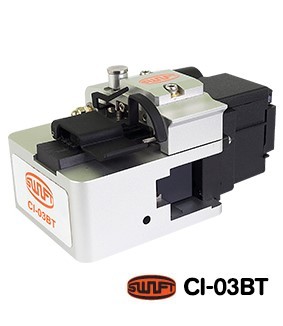

CI-03BT
Key Features:
  • Single Action for Cleaving (Full Automatic), Cleaving & Collection fiber chips
  • Oil Damper System
  • Blade Life time 75,000 fibers (No setup is required when replacing blade)

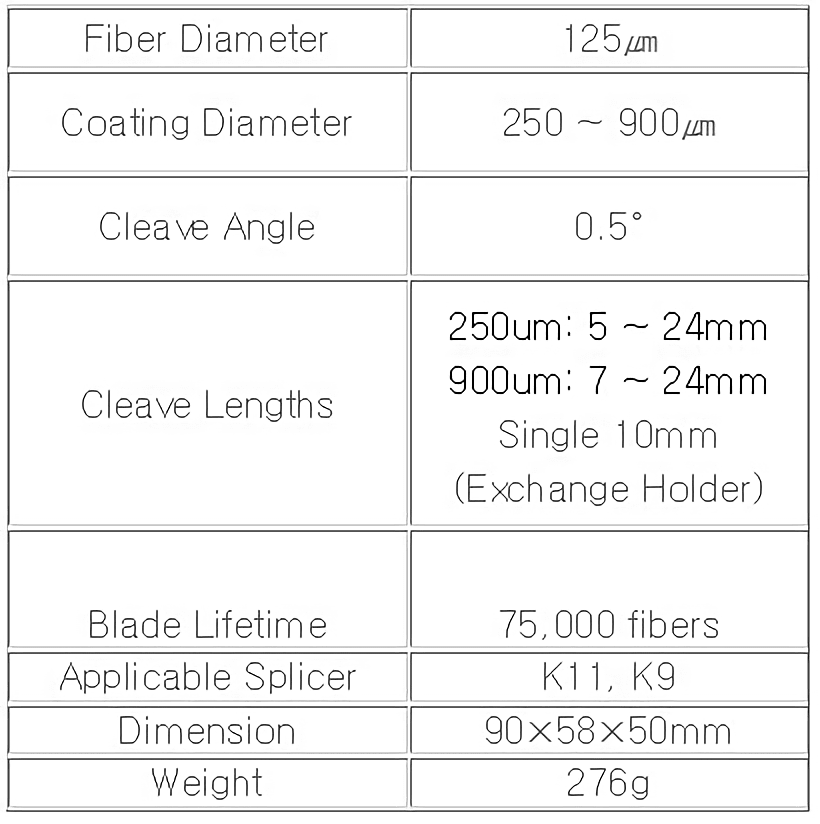

Spesification:

Stand-alone Devices

Multi-Pack F The Integrated FTTH Installation Tool
Swift Multi-Pack F is designed to assemble Swift fusion SOC with any splicer as well as Swift fusion splicers. 4 functions, stripping, cleaning, cleaving and sleeving, are in this single unit. This Swift Multi-Pack F satisfies users’ needs with its efficient and productive design. Remember, this unit can be used for other company’s splicers. Furthermore, users see very unique two functions from the Optical Power Meter & Visual Fault Locator in this unit; they easily see the result of splicing in real time. (ALLINONE+)
BENEFITS AND FEATURES
Stripping
  • No scratches from heated stripping
  • Over one-million cycle motorized
  • Stripping time : 1.5 sec
  • Over 5kg/f Tensile Strength of fiber after stripping
Cleaning
  • One-touch pump
  • Easy to refill cleaning alcohol
Cleaving
  • Single-action cleaving
  • Fiber chip collector attached
Built-in Power Meter and Fault Locator (PCT/KR2013/001243)
  • Built-in two essential tools enable more efficient performance(option)
Capable of Assembling Swift Fusion SOC in any splicers
Specifications
Specifications - Power Meter
Auto Stripper
BENEFITS AND FEATURES
High Quality
  • No cracks on blade surface with optimal design
High Productivity
  • Stabilized stripping with automatic motor
  • Consistent quality of cleaving.
More Convinience
  • Applicable for both single and ribbon fiber
  • Customized setting with 5 steps adjustable heating time and temperature.

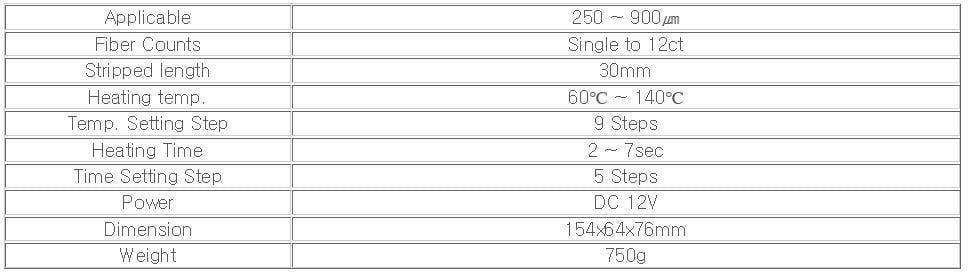

Specifications
Specifications - fault locator

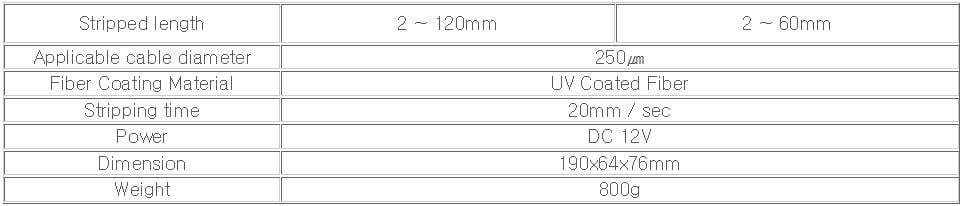

Window Stripper
BENEFITS AND FEATURES
Chemical Strip Draw-backs Resolved (Drawback of chemical strip as below)
  • Difficult control of strip lengths
  • Chemical residues on tripped fiber end
  • Rugged shapes on strip ends.
No Fiber Crack & Keep High Tensile Strength
  • High Tensile Strength > 4kg/f
  • Elimination of fiber crack or degradation.
Specifications

Accessories Etc

Fiber Holder
  • Variable fiber Holders for single, ribbon fiber, SOC and etc.
  • Compatible with fusion splicer, cleaver, multipack and etc.
Cleaver Blades
  • Long-lasting lifespan, superior cleaving quality
  • Compatible with other cleavers
Electrodes
  • Long-last lifespan, superior and stable performance
  • Compatible with various fusion splicers
Ribbon Stripper (IHS-12)
  • Designed to strip the coating of fiber ribbon up to 12 fibers.
Ribbon Separator (IRS-01)
  • Compact ribbon fiber separator

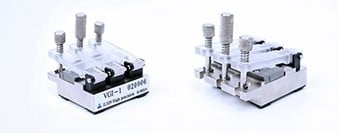

VGI Series
  • V-groove fiber alignment tool

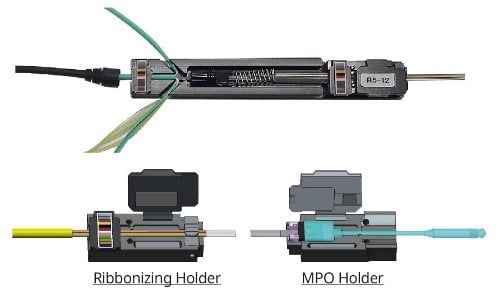

Ribbonizing Holder Kit
  • A holder can have a termination after Ribbonizing fibers directly on the holder.
  • By Shortening the separate Ribonize tool process.
  • completed work with fast fiber clustering time(Average 5~6 minutes)
