Free Jump Optical Crossing Cabinet
Complies with YD / T 988 industry standard, free jump OCC used at optical distribution points in FTTH networks. It used for optical cables lead in, fixing and stripping protection. It supports storage, parking and routing management function for optical splitter pigtails. It has direct fiber splicing function, without fiber jumping and distribution function.
Product Usage
Complies with YD / T 988 industry standard, free jump OCC used at optical distribution points in FTTH networks. It used for optical cables lead in, fixing and stripping protection. It supports storage, parking and routing management function for optical splitter pigtails. It has direct fiber splicing function, without fiber jumping and distribution function.It can install both cassette type splitter and blade type splitter according to customer requirements. It widely used in ODN optical fiber communication network.
Product Features
- Modular structure, support front-operation for optical cable lead-in, stripping, dispatching.
- Integrated splicing and distribution module, small size, high density.
- Support idle fiber pigtails parking.
- Support both ribbon cable and non-ribbon cable.
- Separate trunk and distribution terminal routing, support none cross jumping, dispatching, easy maintenance.
- Compatible with both cassette type splitter and blade type splitter.

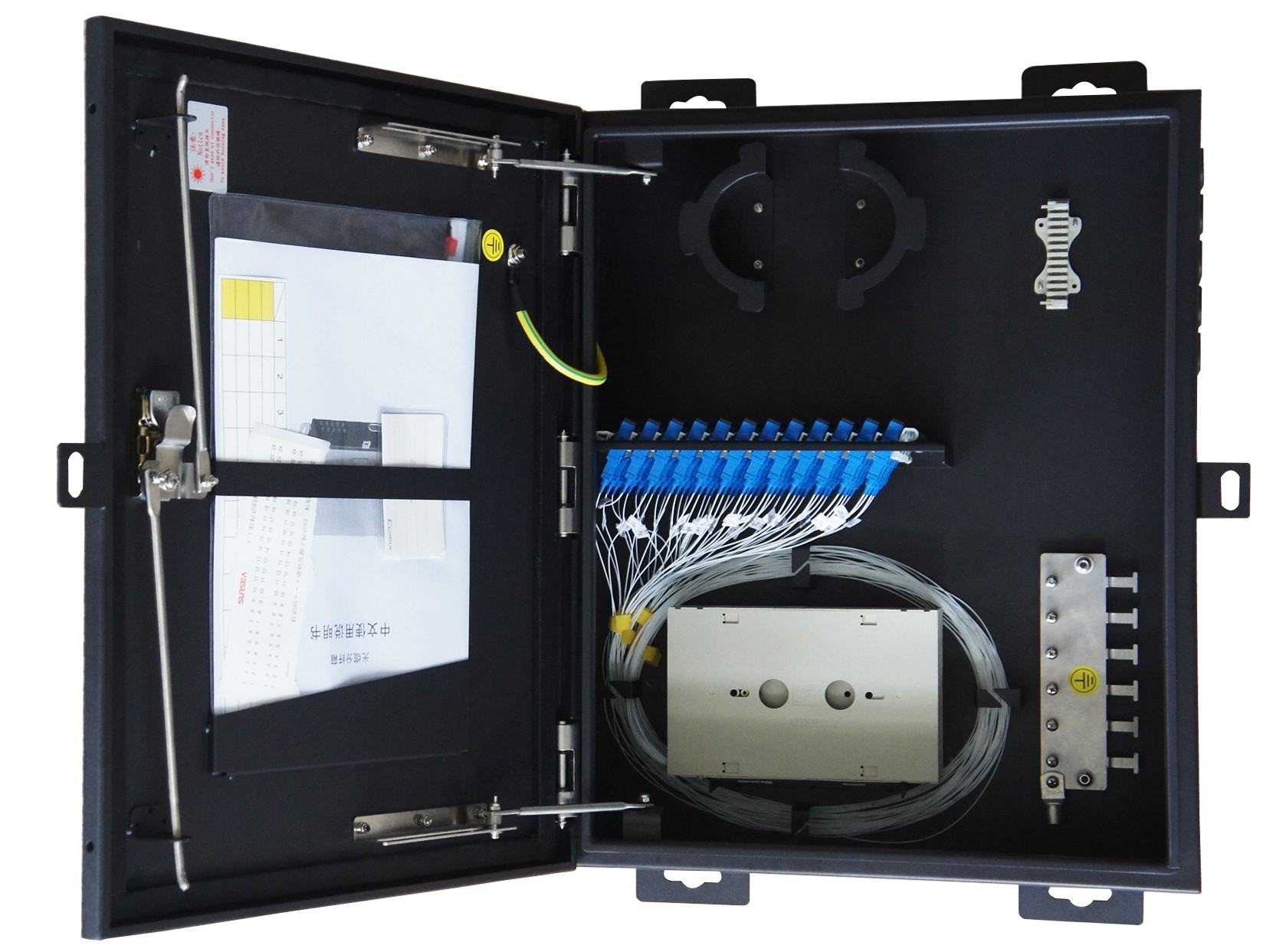

Optical Distribution Box
The product is designed and manufactured according to the communication industry standard YD / T988 and has the functions of optical cable lead in, fixing and stripping protection, optical fiber splicing and protection, pigtail storage, jumper management, optical fiber fixed connection and cross connection; It is widely used in optical fiber communication networks, mainly for the scenario of fiber to the home.
Product Usage
The product is designed and manufactured according to the communication industry standard YD / T988 and has the functions of optical cable lead in, fixing and stripping protection, optical fiber splicing and protection, pigtail storage, jumper management, optical fiber fixed connection and cross connection; It is widely used in optical fiber communication networks, mainly for the scenario of fiber to the home.
It is used between the trunk cable optical distribution cabinet and the fiber distribution box to solve the problem of insufficient number of cables in the trunk transfer box and extends the trunk cable to the user end.
It is used between the trunk cable optical distribution cabinet and the fiber distribution box to solve the problem of insufficient number of cables in the trunk transfer box and extends the trunk cable to the user end.
Product Features
- Optical route identification is clear, effectively avoid confusion during maintenance.
- Insertion/withdrawal durability of connector 1000 times
- Excellent control of curvature radius, to ensure curvature radius of the optical fiber greater than 30mm at any location.
- Flame retardant: in line with GB5169.7 test A requirements
- Pole or wall mounted

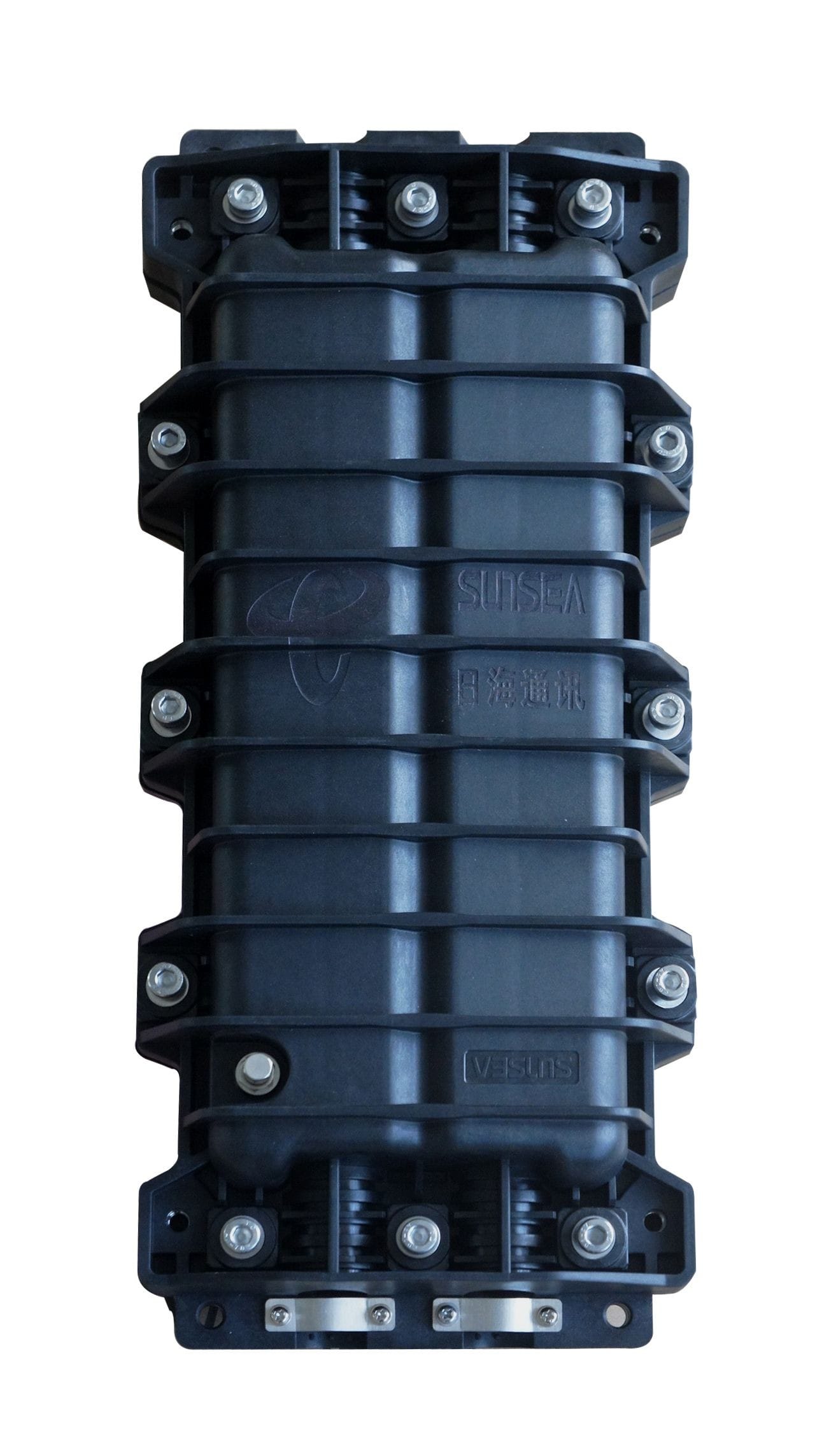

Optical Splicing Closure
Optical Splicing Closure used for optic fiber connection when optic cable downstream branching in PON network. In the FTTX distribution network, the optical splicing closure mainly supports optical cable the A / B end connected, the small-capacity single-core optical fiber splicing, and the leading-out and fixing of multiple access cables.
Product Usage
Optical Splicing Closure used for optic fiber connection when optic cable downstream branching in PON network. In the FTTX distribution network, the optical splicing closure mainly supports optical cable the A / B end connected, the small-capacity single-core optical fiber splicing, and the leading-out and fixing of multiple access cables.
Product Features
- Plastic made of high quality anti-aging engineering plastics, metal parts made of high quality rust-proof materials.
- Good fiber routing design, to ensure curvature radius of the optical fiber with big storage space.
- Splicing disk has big storage space, flip angle greater than 90 °, easy to maintenance and expansion.
- Fixed with three points: strengthen component fixed within box, cable jacket fixed within box, cable jacket fixed outside box.
- It can be installed grounding devices and test valve. Protection level is up to IP68.

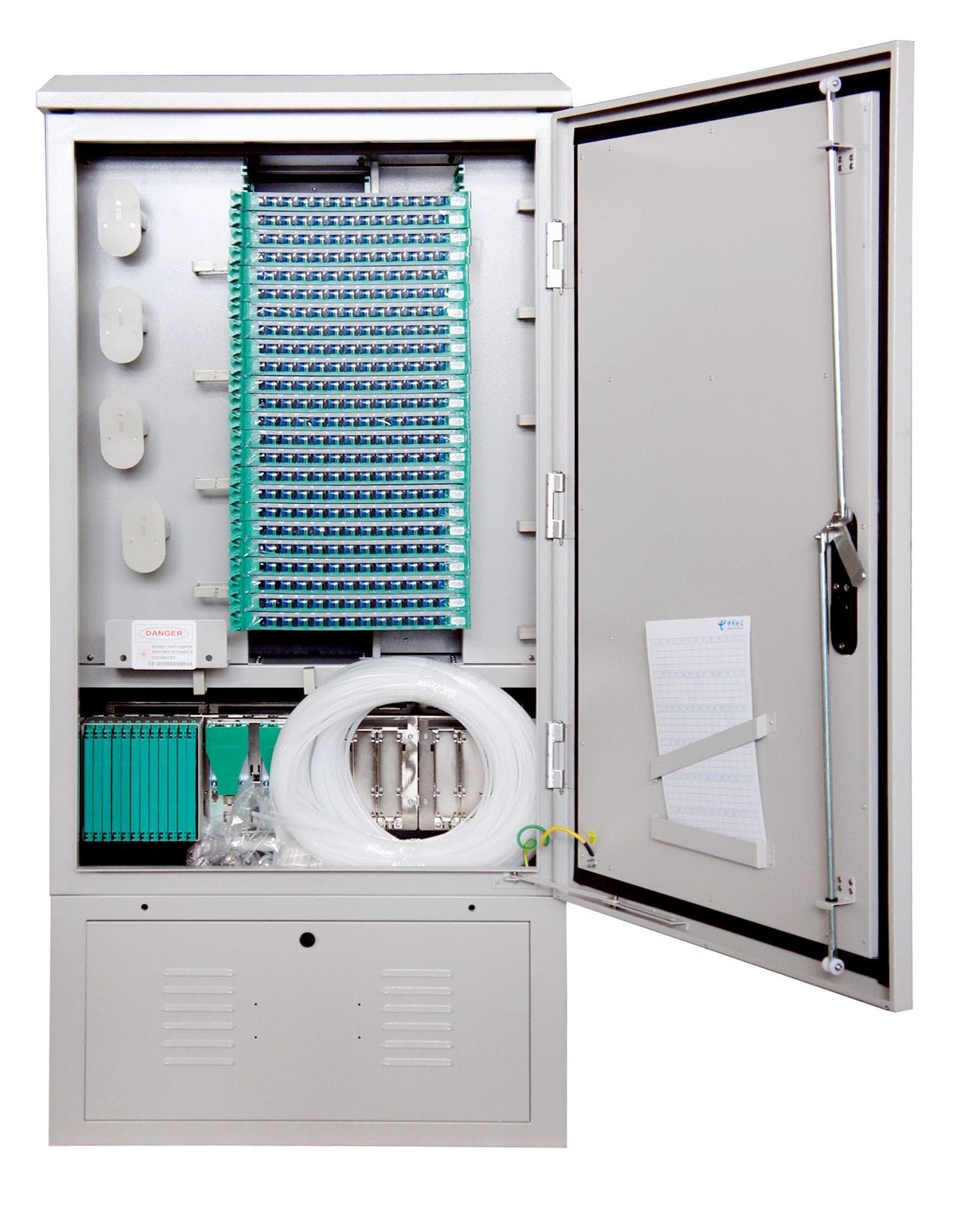

Optical Crossing Cabinet
With the rapid development of optical communication network, outdoor optical Crossing Cabinet was widely used. This series of products are mainly used for the connection, distribution and dispatching of communication optical cables to the optical distribution nodes after they are led out of central office, and provide the communication network with safe, flexible optical fiber and optical cable management equipment.
Brief Introduction
With the rapid development of optical communication network, outdoor Optical Crossing Cabinet was widely used. This series of products are mainly used for the connection, distribution and dispatching of communication optical cables to the optical distribution nodes after they are led out of central office, and provide the communication network with safe, flexible optical fiber and optical cable management equipment.
The optical crossing cabinet is composed of the optical cable stripping and fixing components, the splicing and wiring module, the fiber storage area, the parking area and the splitter installation area, etc. to complete the leading-in and fixing of the optical cables, the splicing and wiring of the optical fibers, the installation and management of the optical splitter. It can be used for optical line capacity extension together with SA series optical splitter module box.
The optical crossing cabinet is composed of the optical cable stripping and fixing components, the splicing and wiring module, the fiber storage area, the parking area and the splitter installation area, etc. to complete the leading-in and fixing of the optical cables, the splicing and wiring of the optical fibers, the installation and management of the optical splitter. It can be used for optical line capacity extension together with SA series optical splitter module box.
Main Features：
- Effective enclosure seal, protection class: IP65
- Single-door, or double-door, all front operation
- Optical splitter modular structure for easy expansion
- Snap-in installation of FC, SC, ST, dual LC and other adapters
- Good fiber routing design, to ensure optical fiber curvature radius
- Reliable cable fixing, stripping protection, grounding
