ODN series products
Brief Introduction

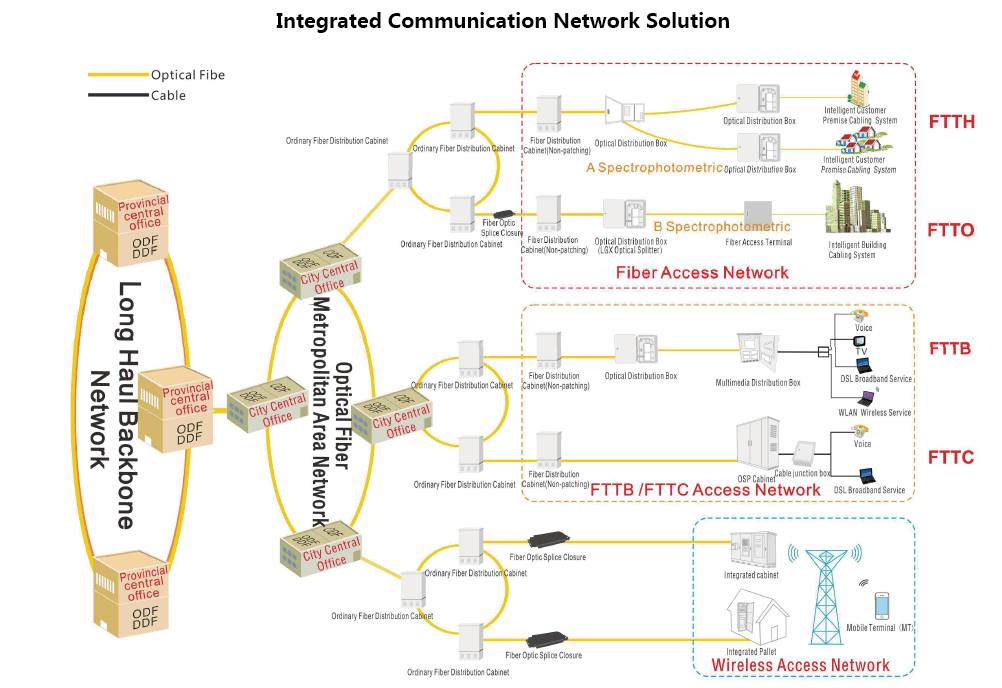

The access network ODN is a kind of FTTH optic fiber network that mainly based on the PON equipment. Its role is to provide optical transmission channels between the OLT and the ONU. It is an access networking method that brings the fiber close to the user. Passive Optical Network (PON) technology uses optical fiber as the transmission medium, with full passive optical split transmission, large transmission capacity, high transmission quality, long transmission distance, high reliability, anti-electromagnetic interference, integrated service provision, and bandwidth allocation,strategy, networking flexibility and other advantages.Functionally, the ODN can be divided into five parts: the access machine room system, the feeder cable system, the distribution cable system, the incoming line cable system and the fiber terminal system.
Based on years of technology accumulation and engineering practice in the field of communication networks, and unique insights into future optical communications, Shenzhen Kexin Communication Technologies Co., Ltd. has launched FTTx (FTTO, FTTH, FTTB+LAN...FTTCab+xDSL) system solutions based on communication network physical connection devices for domestic and international communication network constructors,provided all-optical or optic copper combined wiring products from the communication central room to the user's home or office, meeting the standard of physical connectivity platform designed for the next generation of broadband and 5G access networks.
Based on years of technology accumulation and engineering practice in the field of communication networks, and unique insights into future optical communications, Shenzhen Kexin Communication Technologies Co., Ltd. has launched FTTx (FTTO, FTTH, FTTB+LAN...FTTCab+xDSL) system solutions based on communication network physical connection devices for domestic and international communication network constructors,provided all-optical or optic copper combined wiring products from the communication central room to the user's home or office, meeting the standard of physical connectivity platform designed for the next generation of broadband and 5G access networks.
Technical Parameters of ODN ProductMain Specifications
Indoor product use conditions
- Working temperature: -5°C+40°C.
- Relative humidity: ≤ 85%(when +30).
- Atmospheric pressure: 70~106KPa.
- Storage temperature: -25°C~+55°C.
- Anti-corrosion performance: IEC60068-2-11 48H salt spray test.
- Protective performance: IP20.
Outdoor product use conditions
- Working temperature: -40°C~+60°C.
- Relative humidity: ≤ 95%(+40).
- Atmospheric pressure: 70KPa~106KPa.
- Storage temperature: -25°C +55°C.
- Anti-corrosion performance: IEC60068-2-11 96H salt spray test.
- Protective performance: IP55.
Optical performance
- Connector attenuation (insertion, interchange, repetition): 0.3dB.
- Return loss: APC type ≥ 60dB;UPC type ≥ 50dB.
- Connector plugging durability life: >1000 times.
High voltage protective grounding device
- Insulation resistance: 1000MΩ/500V (DC).
- Withstand voltage: 3000V (DC)/1min,no breakdown, no arcing.
- Ground wire cross-sectional area: 6mm².
Physical performance
- Control the radius of curvature throughout the process, to ensure that the radius of curvature of the fiber is greater than 30mm at any position.
- Vertical pressure that the top surface of the box can withstand: >1000N.
- The vertical pressure that the outermost end can withstand after the door is opened: >200N.
- Flame retardant performance: UL94-V0.

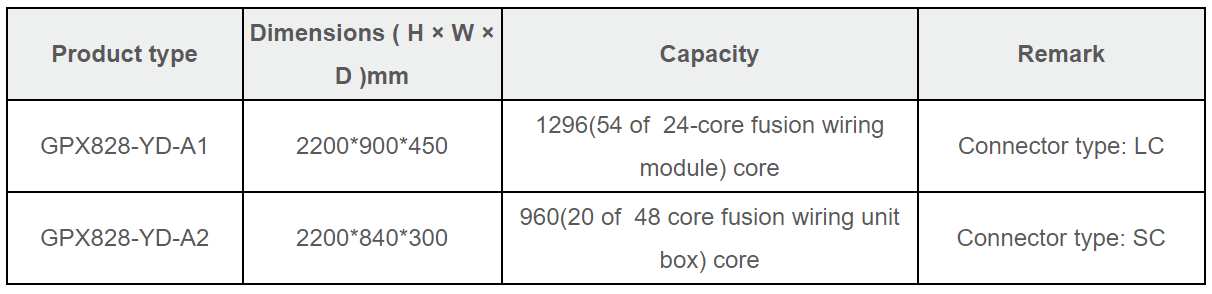

Optical Fiber Distribution Frame
Product description
Fiber distribution frame is a wiring connection device between optical cable and optical communication device or between optical communication devices. It is used for the connection and distribution of the central backbone optical cable in the optical fiber communication system, which can conveniently realize the connection, distribution and scheduling of the optical fiber line, and can be used in the transmission network room, the aggregation machine room, and the access machine room.
Product features
- The frame body is welded by metal plate and has high mechanical strength.
- The surface adopts electrostatic spraying technology, corrosion resistant and has beautiful appearance.
- Fusion wiring integrated unit or fusion wiring split unit is optional.
- Fusion wiring unit can choose drawer or flip type.
- Optional glass door panel or metal door panel.
- Reliable cable entry and fixing, suitable for ribbon cable and bundle cable.
- The route is divided by the partition, and there is no intersection in the cabinet.

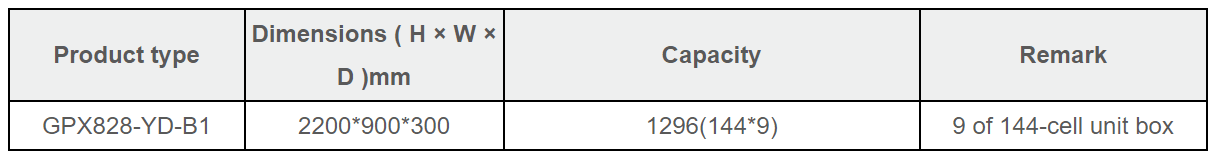

Intermediate Optical Fiber Distribution Frame
Product description
The intermediate optical fiber distribution frame is an optical fiber distribution frame capable of completing the functions of connection, scheduling, debugging of different optical communication devices in the communication machine room, and at the same time, capable of completing the storage function of the surplus jumper length of the line end and the equipment end.
Product Features
- The frame body is welded by metal plate as a whole and has high mechanical strength.
- The surface is electrostatically sprayed, corrosion resistant and has beautiful appearance.
- High quality glass door for easy viewing and maintenance.
- Modular design, optional 144-cell unit box, 96-cell unit box, 24-core MPO unit box;
- The unit box has a reversible structure, which is easy for maintenance;
- The left and right route are partitioned, Front and rear jump fiber structure, there is no crossover in the cabinet.
Rack-type Terminal Box
Product description
The rack-type terminal box is used for wiring connection between the optical cable and the optical communication device, through the adapter in the wiring box, the optical jumper extract the optical signal and realize the optical wiring function.It is suitable for the protective connection of optical cable and wiring pigtail. It is also applicable to the fiber termination point in fiber access network, and is widely used in integrated cabinets and network cabinets.
Product features
- 19-inch standard structure,with adjustable mounting ears, adapt to different installation scenarios.
- High-density, 1U wiring capacity up to 48 cores (dual LC adapter), 2U wiring capacity up to 96 cores (dual LC adapter).
- Drawer type structure, easy to use and maintain.
- Uniform rack, multiple adapter panels are optional, flexible application, convenient expansion and transformation.
- Fusion and wiring are separate for easy expansion and maintenance.
- Product sizes can be customized according to customer needs.

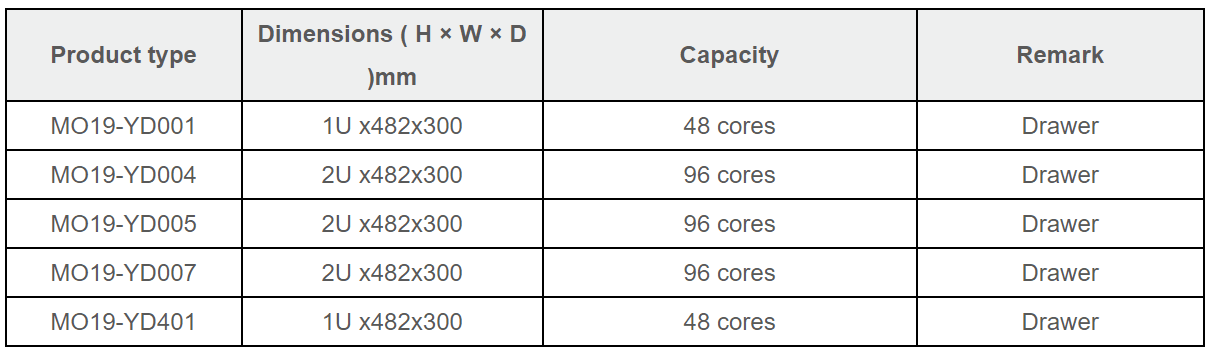

- Orders guide
SMC OCC
Product features
- The cabinet is made of SMC polymer material, which has excellent anti-corrosion performance and protection level reaches IP65.
- Full frontal operation, pull-out structure, fusion and wiring integrated module operation, easy to maintain.
- The design of the berthing position protects the end face of the pigtail that is free of the optical branch.
- Providing a direct fusion unit for direct fusion operation of the optical cable.
- Suitable for ribbon, bundle and non-ribbon cables.
- Universal adapter mounting strip, which is compatible with FC, SC, LC and other adapters.
- It has reliable cable introduction, fixing, protection and grounding devices.
- With a variety of fusion, wiring identification, convenient for recording fusion and wiring.
- The end face of the adapter is at an angle of 30° to the front in order to facilitate the extraction of the fiber and protect the operator from laser burns to the eye.
- Reasonable fiber-optic coil structure ensures that the fiber winding radius is greater than 40mm at any position.
- Compatible with 1:2~1:64 multiple capacity box dividers to form a complete optic cable split management system.

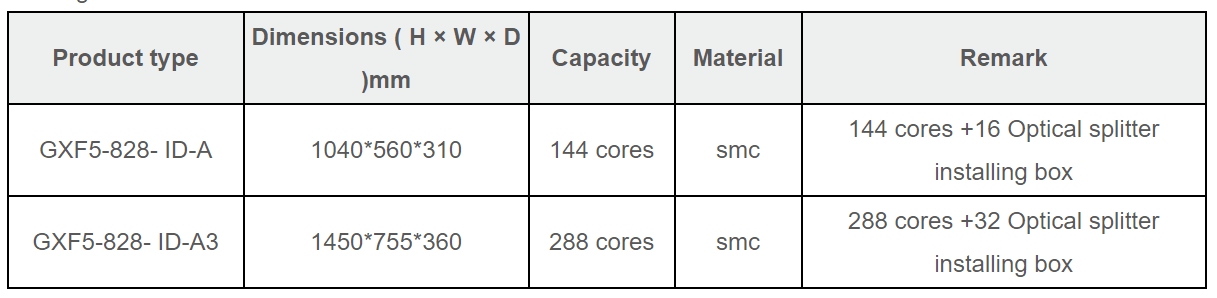

- Orders guide
Optical Distribution Box
Product Description
The fiber optic cable splitting box is used in FTTH, consisting of optical cable stripping and fixing components, optical splitter module, welding module, storage area, etc., completing the introduction and fixing of the optical cable, the fusion and wiring of the optical fiber, the installation and management of the optical splitter, the coiled storage, fixing and fusion of leather cables,to realize optical power distribution function.
Product features
- The cabinet is made of ABS material or SGCC metal material, which has beautiful appearance, good anti-aging and anti-corrosion performance.
- The door frame adopts high quality sealing strip with protection level IP55.
- Capable of box type optical splitter, micro optical splitter and insert type optical splitter.
.png)
FTTH Network End Products

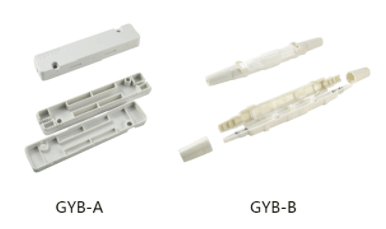

Rubber-insulated protection
- Used for protection after fusion of two rubber-insulated optical cable.
- Used for protection after fusion of rubber-insulated optical cable and indoor soft optical cable.
- Tension resistance≥ 50N.
- GYB-A Size: Φ8.5x84.
- GYB-B Size: 120x20x12

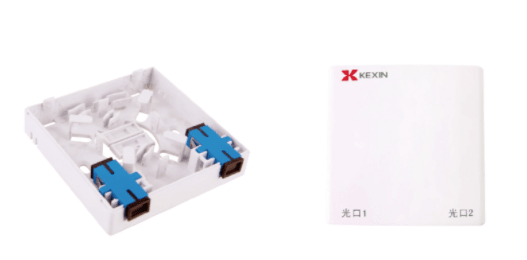

HTB
- Standard installation size, easy to install.
- Excellent material, the box is made of F-V0 flame retardant ABS+PC engineering plastic.
- The optical fiber socket box has a fixing device for optical cable introducing, and a fixing and protecting device for the optical fiber connector.
- Dimensions:86x86x24, the mounting screw hole spacing: 60mm.

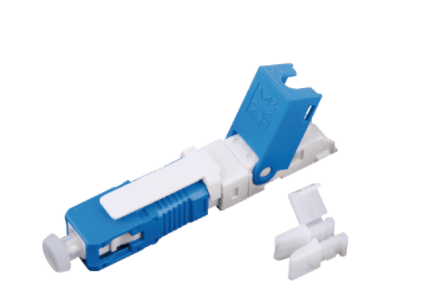

FMC
- On-site mechanical connection, no fusion machine is required.
- Insertion loss: average ≤ 0.25dB; maximum ≤ 0.4dB.
- Return loss: PC ≥ 40dB、UPC ≥ 50dB、APC ≥ 55dB.
- Tension resistance: ≥ 30N (3.0x 2.0 mm rubber-insulated optical cable).
- On site assembly time: < 2 minutes.
- Repeatable opening times: ≥ 5 time.
FMC(Fusion type)
- Direct thermal fusion connection, using mature thermal fusion technology.
- Insertion loss: average ≤ 0.25dB; maximum ≤ 0.4dB.
- Return loss: PC ≥ 40dB、UPC ≥ 50dB、APC ≥ 55dB.
- Tension resistance: ≥ 40N (3.0x 2.0 mm rubber-insulated optical cable).
- On site assembly time: <2 minutesSuitable for wall mounting and pole mounting.

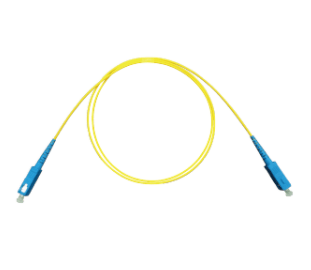

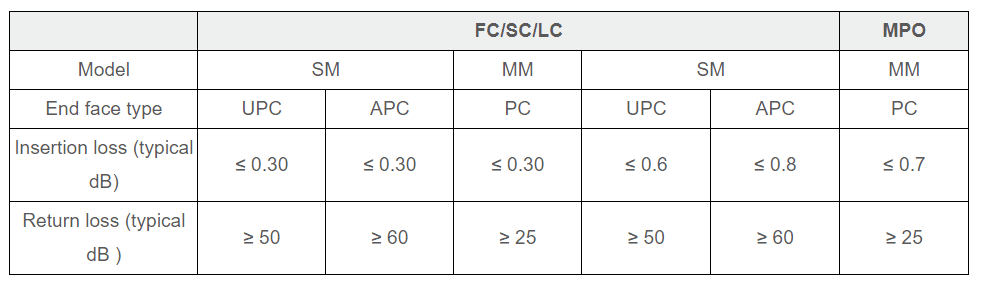

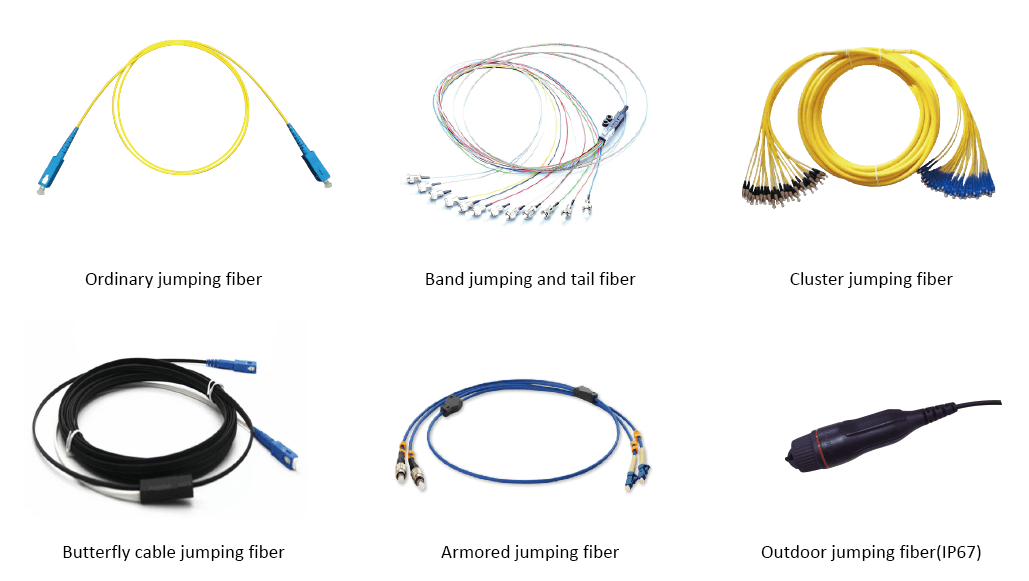

Fiber Optic Movable Connector
Product Description
The fiber optic patch cord is a movable connector between the fiber optic cable, the optical cable and the optical device. It precisely pairs the two fiber end faces so that the optical energy output from the transmitting fiber can be coupled to the receiving fiber in the maximum extent and can remove connected devices.

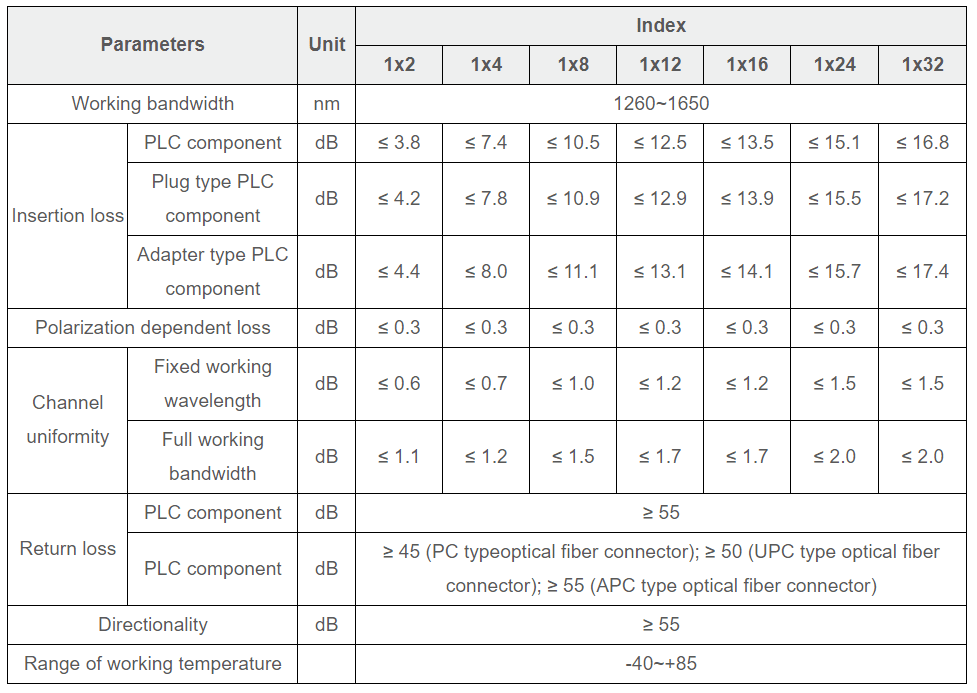

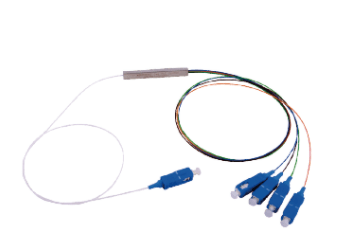

Optical Splitter
Product Description
The company's optical splitter adopts PLC chip, which has the characteristics of wavelength insensitivity, small size, wide working wavelength range, high reliability and good uniformity of splitting. It is especially suitable for passive optical networks (EPON, BPON, GPON, etc.).
