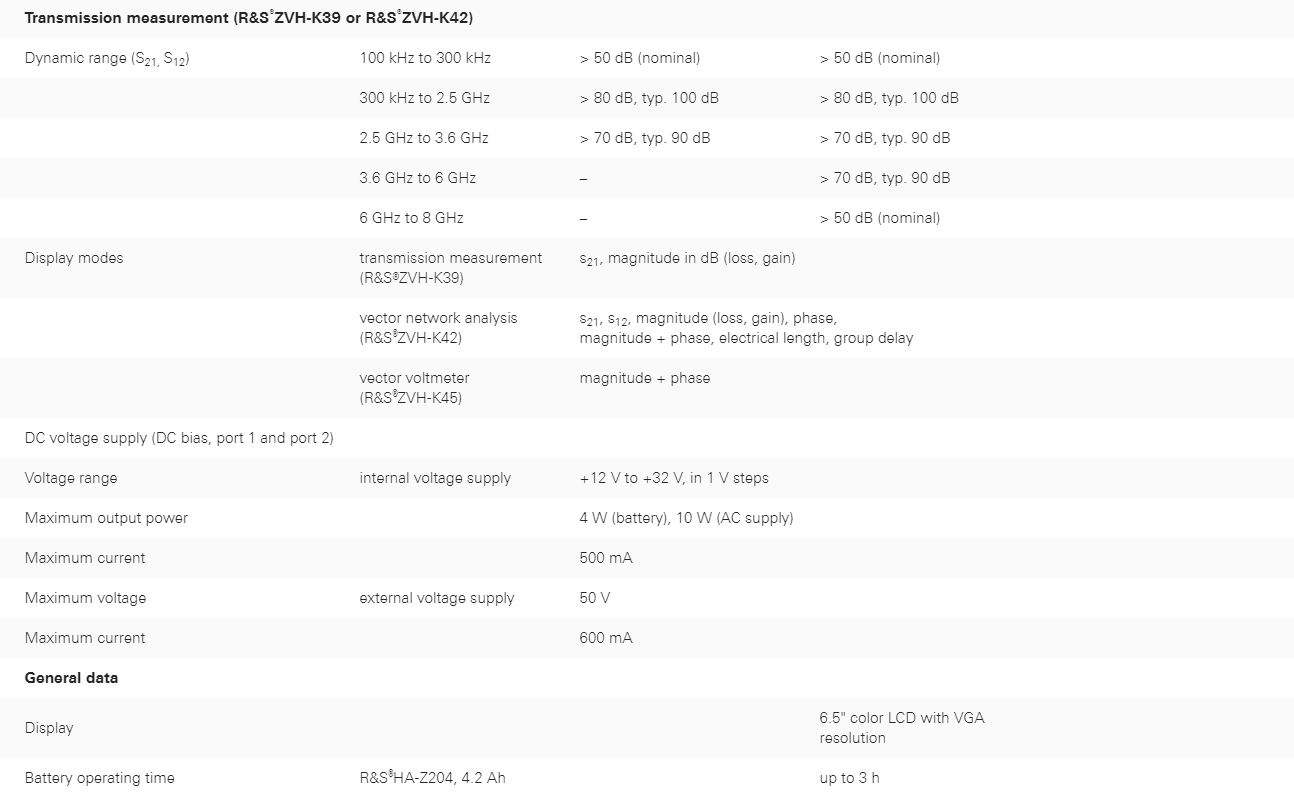

100 dB (typ.) dynamic range for transmission measurements
Fast and consistent measurements by using preconfiguration wizard
Remote control via free software or app
Rugged, splash-proof housing for use in the field
A handy analyzer for installation and maintenance in the field; easy operation and simple documentation

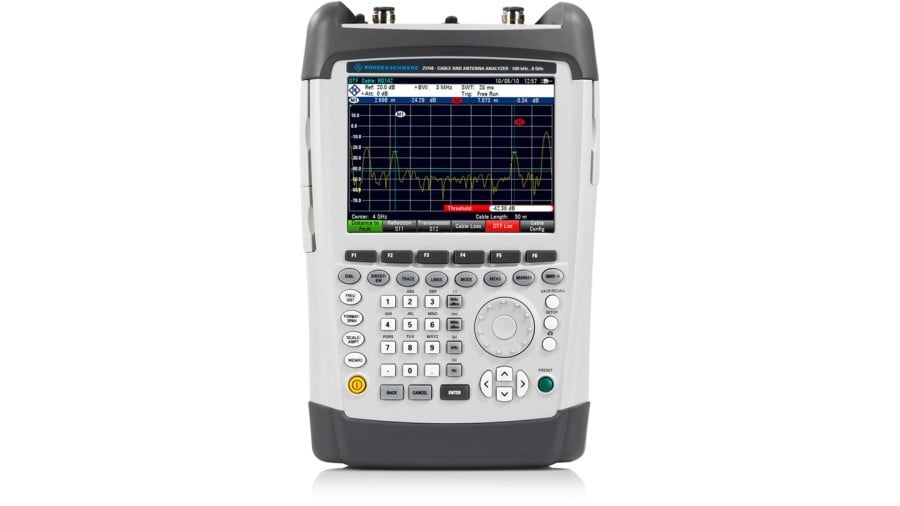

The R&S®ZVH is a rugged, handy cable and antenna analyzer, designed for use in the field. Its low weight and simple operation make it indispensable for anyone who needs an efficient measuring instrument outdoors for the installation and maintenance of antenna systems.
Features & benefits
Fast and accurate measurements
Wizard function allows users to preconfigure test setups before going to the field. Pictures and test instructions can be inserted to aid the technican on site. This speeds up measurements on-site and reduces measurement errors due to entering the wrong parameters or having the wrong setup. The wizard function simplifies complex test sequences and eliminates the need to always ask how to configure the test setup.
The capability of the R&S®ZVH can be extended by purchasing keycodes licences. With R&S®ZVH-K42, it can perform 2-port vector network analysis to determine the matching and transmission characteristics of filters, amplifiers, etc. R&S®ZVH-K1 adds spectrum analysis to measure the signal occupied bandwidth, field strength and spurious emissions, etc. There are more functions that the analyzer can handle. It is an ideal, handy tool in the field.
The top handle makes it easy to carry the analyzer. It can also hang on the tower or equipment rack for hands-free operation on site without needing additional accessories to support it.
Easy remote control
R&S®InstrumentView is free software to remote control the analyzer, preconfigure measurement settings, perform postanalysis and generate reports. The connection to the computer or laptop is via USB or LAN interface. Alternatively, simply connect a commercially available wireless router to the analyzer via LAN interface and download the free R&S®MobileView app on your smartphone or tablet to remote control the analyzer or transfer files to and from the analyzer.
